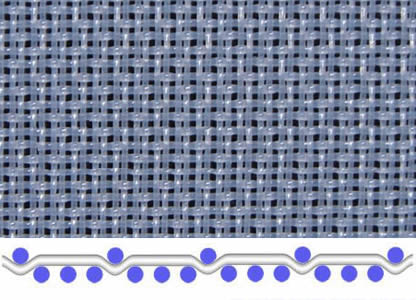

Polyester pulping fabrics is used in several of washing equipments. It is mostly used in the fabrics of wash coal, vacuum wash plasm machine and drum type wash plasm machine.
Polyester pulping fabric Specification:
| Model of fabric | Thread Diameter (mm) | Density (thread/cm) | Intensity (N/cm) | Weight Kg/m2 | Thickness Mm |
Permeability (m3/m2h) |
||||
| Warp | Weft | Warp | Weft | Surface | Steely Joining |
Spiraling ring joining | ||||
| 16304 | 0.25 | 0.30 | 19 | 15.5 | 1200 | 800 | 600 | 0.39 | 0.60 | 15000 |
| 18304 |
0.25 |
0.30 | 21 | 17 | 1300 | 850 | 650 | 0.44 | 0.62 | 13900 |
| 18354 |
0.25 |
0.35 | 21 | 19 | 1300 | 850 | 650 | 0.48 | 0.66 | 12000 |
| 18384 |
0.25 |
0.38 | 21 | 14.5 | 1300 | 850 | 650 | 0.51 | 0.71 | 9500 |
